A 3

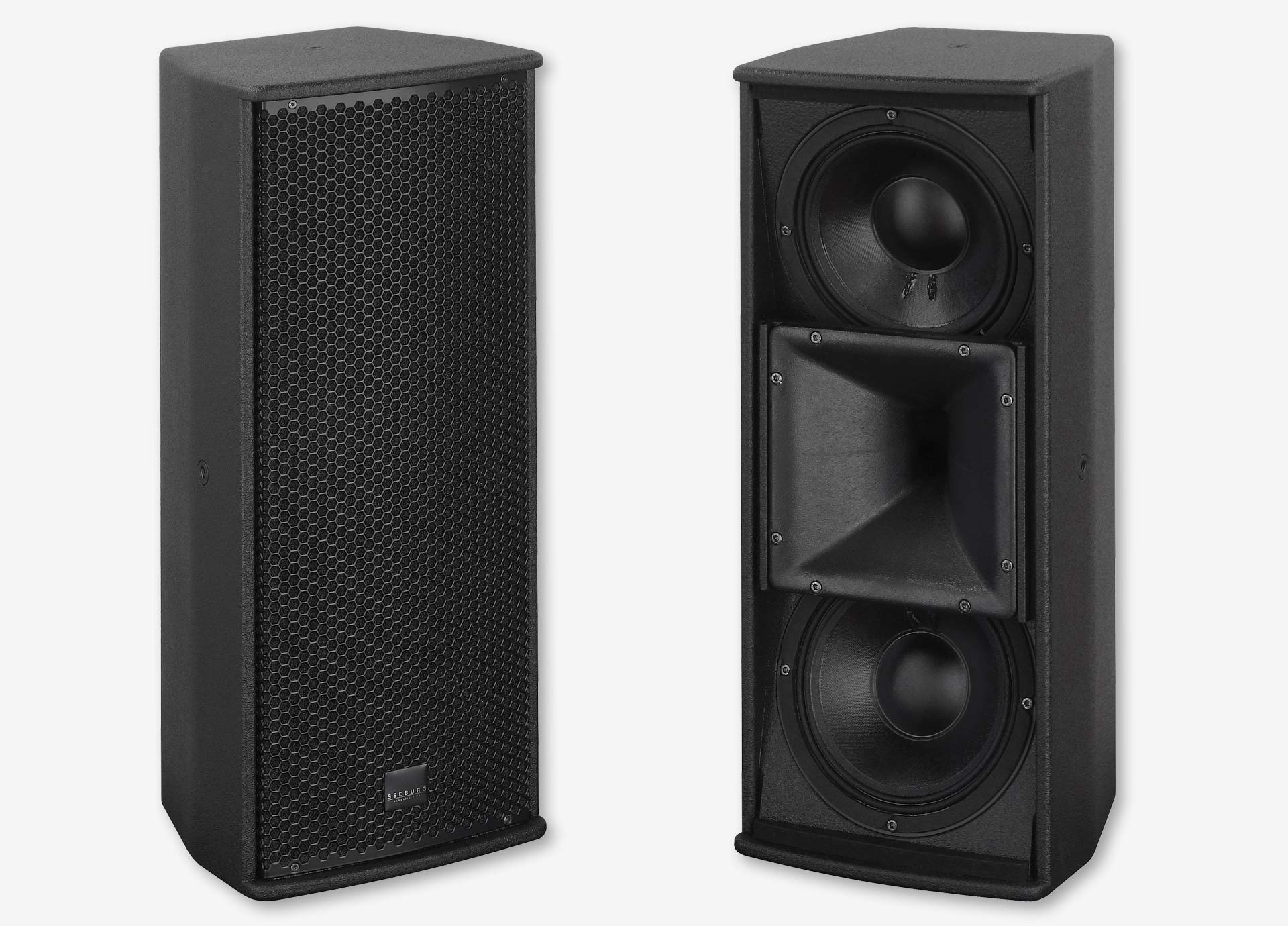

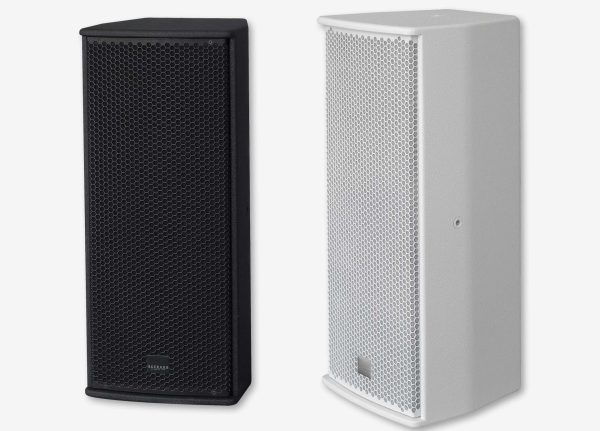

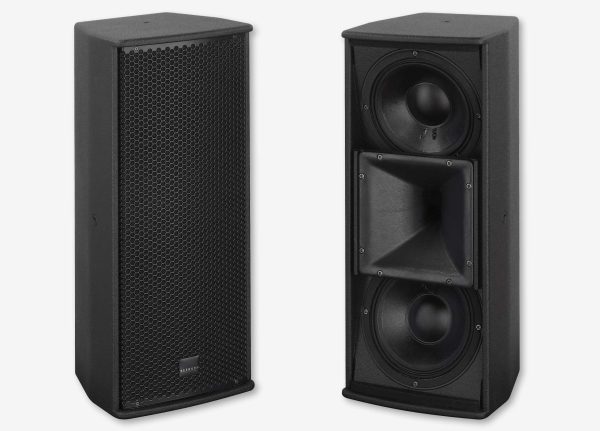

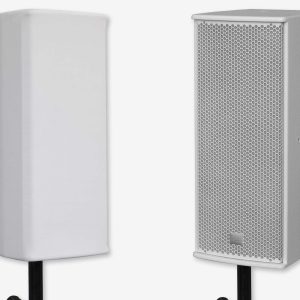

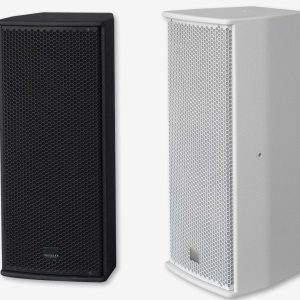

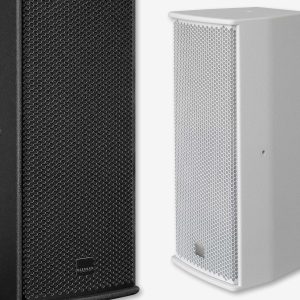

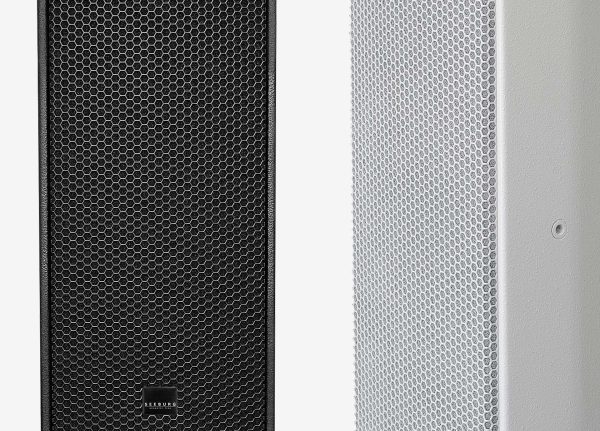

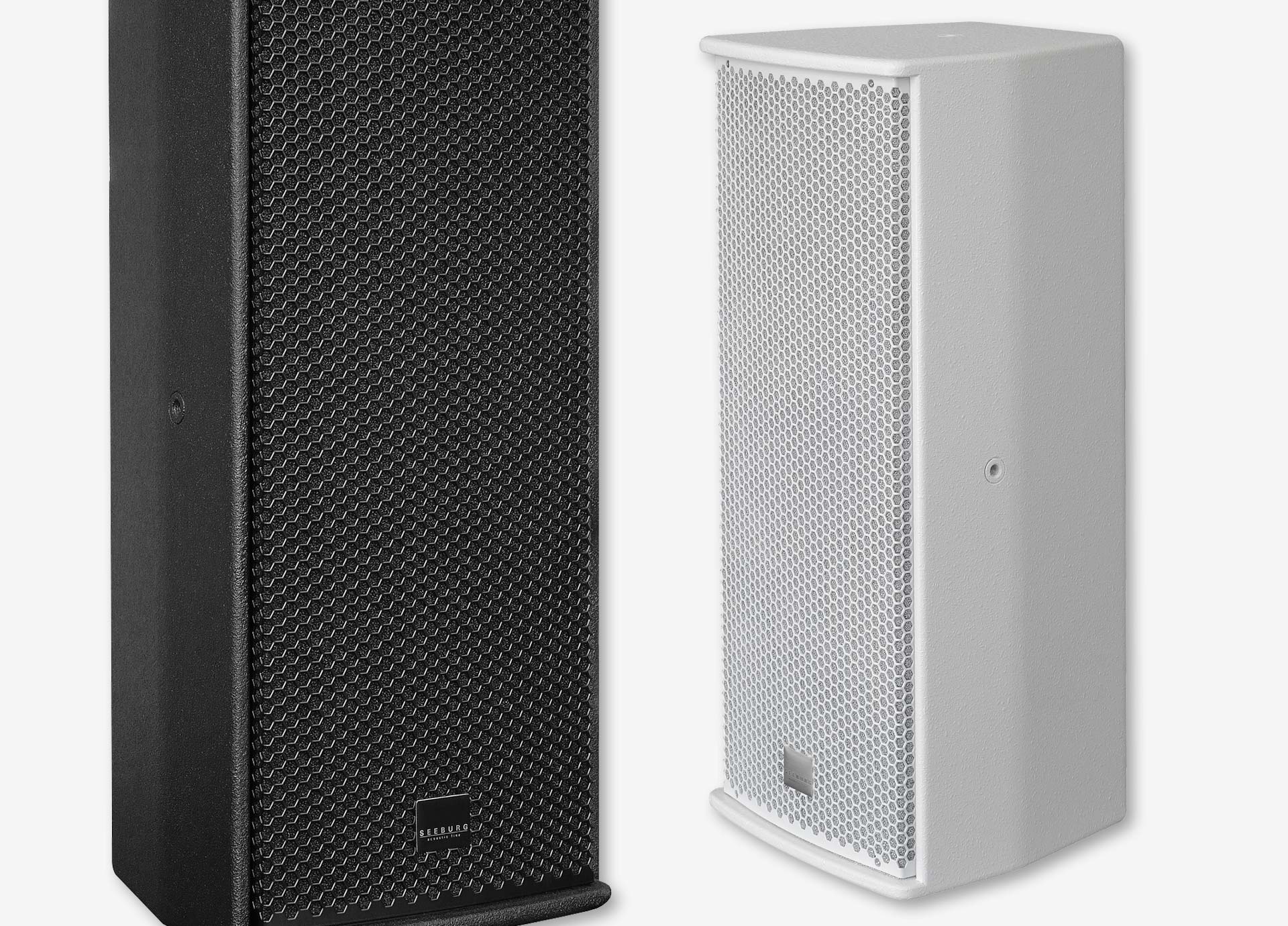

High output universal high – mid system fitted with a classic 2 x 8″ Nd / 1″ driver combination. Equally suited as a strong top in combination with a subwoofer or as a stand alone system for speech reproduction over short to medium distances. Four M10 mounting points, and a fifth as an optional alternative to the speaker stand socket, in combination with the comprehensive accessory range, allow simple vertical or horizontal mounting.
The A 3 is also available in the dp-version with an integrated,
DSP controlled 500 Watt / 150 Watt AES amplifier.
| A 3 | A 3 dp | |
| Speaker Components | 2 x 8“ Nd / 1” | 2 x 8“ Nd / 1” |
| Description | HiMid Sound System | HiMid Sound System |
| Power AES / Peak | 500 W / 1500 W | – – – |
| Amp Power | – – – | LF: 500 W AES / 110-230 V HF: 150 W AES / 110-230 V |
| Impedance nominal | 4 Ω (16 Ω optional) | – – – |
| Rated Current | – – – | 0,6 A @ 230 V |
| SPL 1 W / Peak @ 1 m |
100 dB / 132 dB | – – – |
| SPL Peak@1m | – – – | 132 dB |
| Max. Input Signal | – – – | 25 dBu |
| DSP | – – – | HDLM FPGA Processing 32 bit floating point |
| AD / DA | – – – | 24 bit / 96 kHz |
| Latency | – – – | 0,8 ms (analog in to analog out) |
| Usable Range |
80 Hz – 20 kHz (-6 dB) | 80 Hz – 20 kHz (- 6 dB) |
| Tuning Frequency excursion minimum | 90 Hz | 90 Hz |
| X – Overpoint acoustical | 1,4 kHz | Depends on preset |
| Coverage horizontal / vertical | 90° x 60° rotatable | 90° x 60° rotatable |

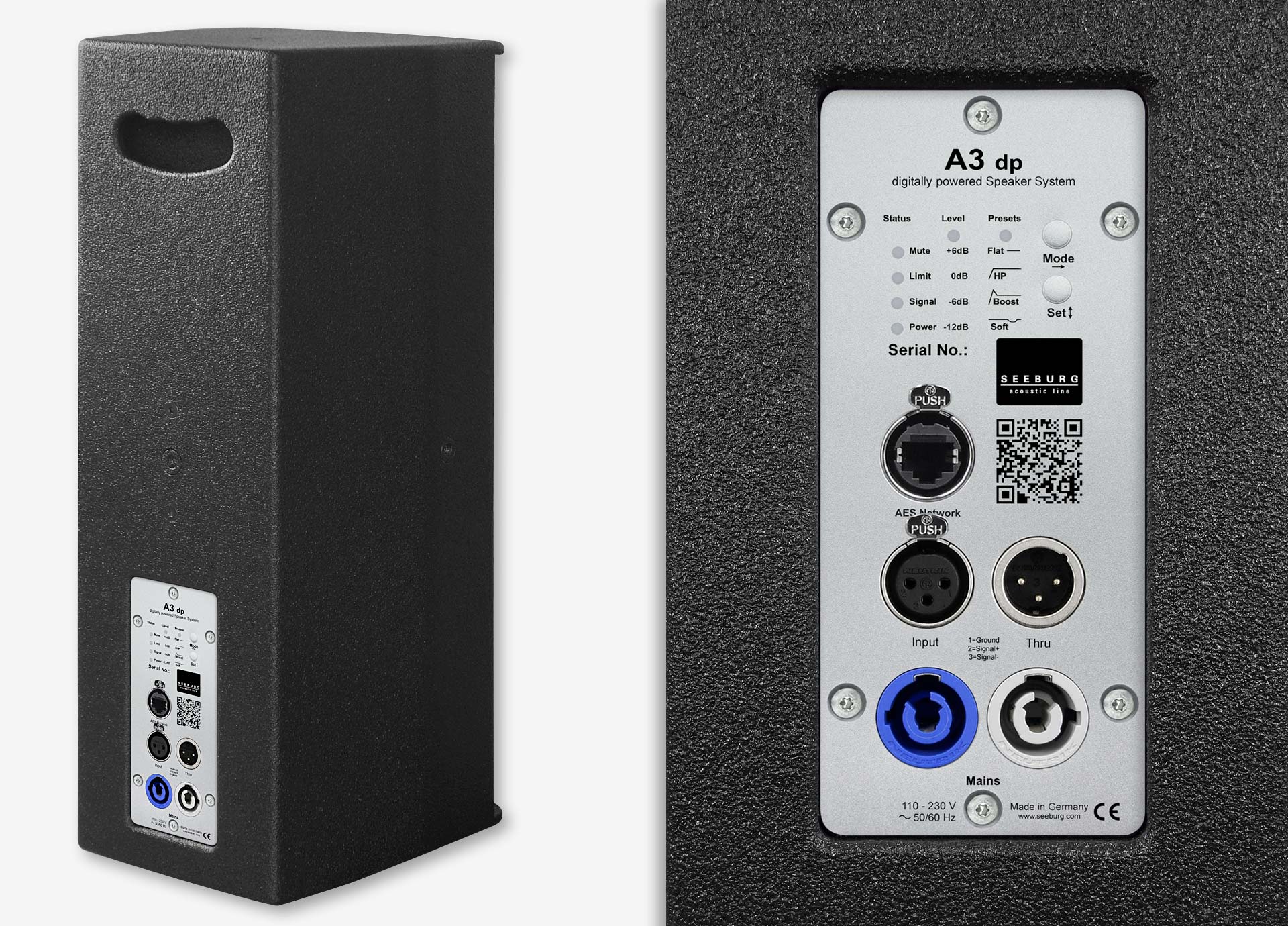

| Connectors | 2 x Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop through |
XLR in/thru, Ethercon, Powercon in/out |
| Handles | 1 x | 1 x |

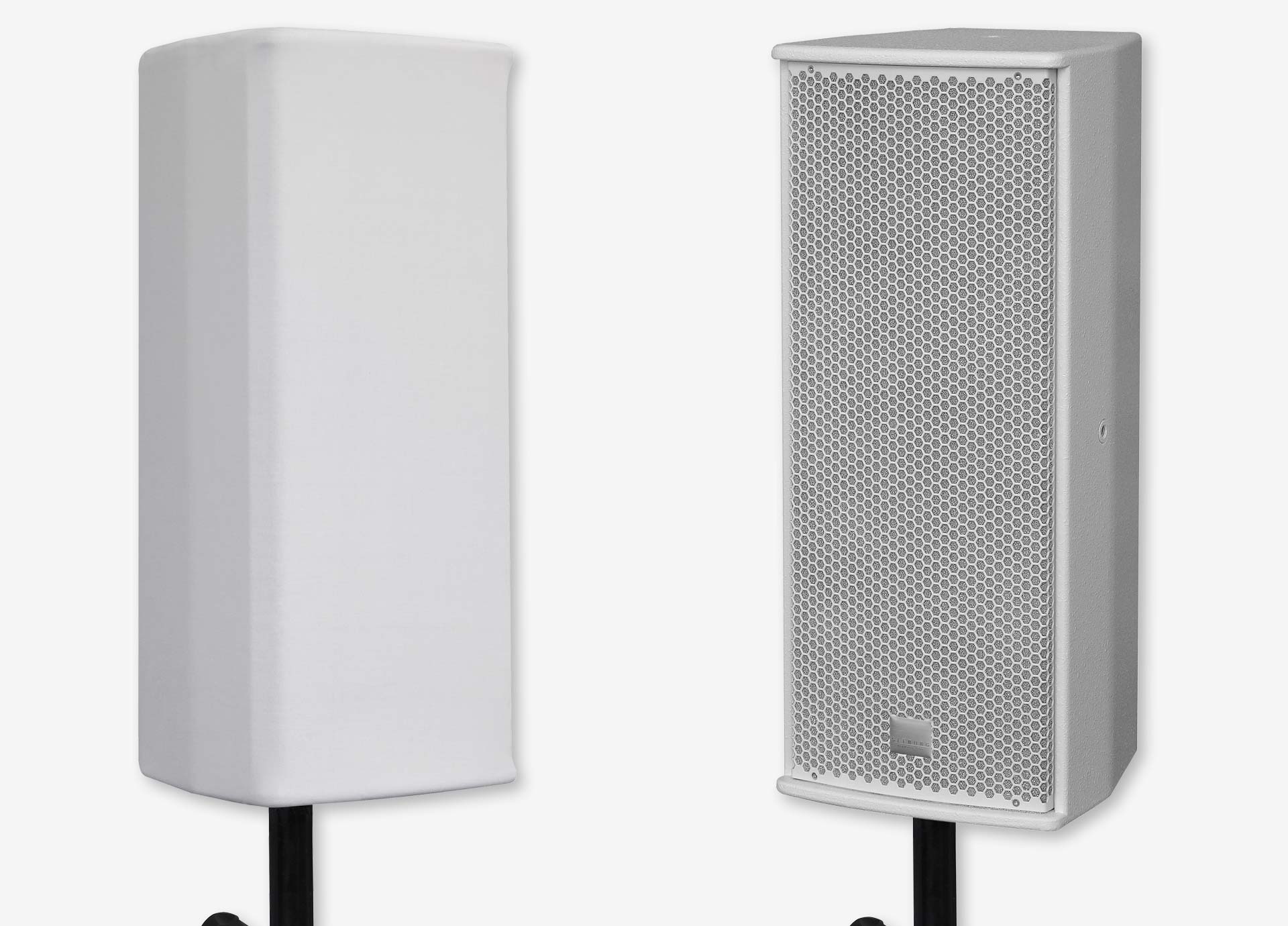

| Rigging / Fittings | 4 x M10 2 x M6 35 mm pole mount |
4 x M10 2 x M6 35 mm pole mount |
| Weight | 12,5 kg | 13,5 kg |
| Size height x width x depth | 59,0 x 25,0 x 25,0 cm | 59,0 x 25,0 x 25,0 cm |
| Order No. | 00240/II | 00240/II/dp |
