DSP 2.6
The DSP 2.6 combines a high quality 2-in / 6-out loudspeaker management system with a system connection panel including all necessary input and output connections in one device, thus making the configuration of a professional amp rack a very simple matter. The two low-noise analog inputs are actively balanced, with characteristics which closely simulate those of a balancing transformer.
Audio files for programming the DSP 2.6 can be generated on the Seeburg website with the program “LPI” (Loudspeaker Programming Interface).
–> LPI Programming-Interface (Web-Link)
–> SEEBURG DSP 2.6 Productinformation (video)
| Description | 2 in 6 out DSP Controller |
| Rated Current | 0,07 A @ 230 V |
| Max. Input Signal | 21 dBu |
| Input Dynamic Range | > 131 dB |
| CMRR real-world (50 Hz) | > 82 dB |
| DSP | HDLM FPGA Processing 32 bit floating point |
| AD/DA | 24 bit / 96 kHz |
| Latency | 0,8 ms (analog in to analog out) |
| Signal/Noise ratio |
126 dB |
| Background Noise | -107 dBu (A) |
| Nominal Amplification | 0 dB |
| Max. Delay |
5,33 ms (each Channel) |
| No. of Filters | 160 (20 each Channel in/out) |
| Max. Output Signal | 14,5 dBu |
| Output Dynamic Range | 120 dB |
| Protective Circruits | Short Circuit Protection, Over-Voltage Protection, Overload Protection |

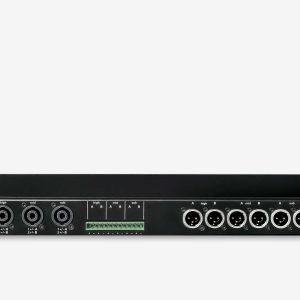

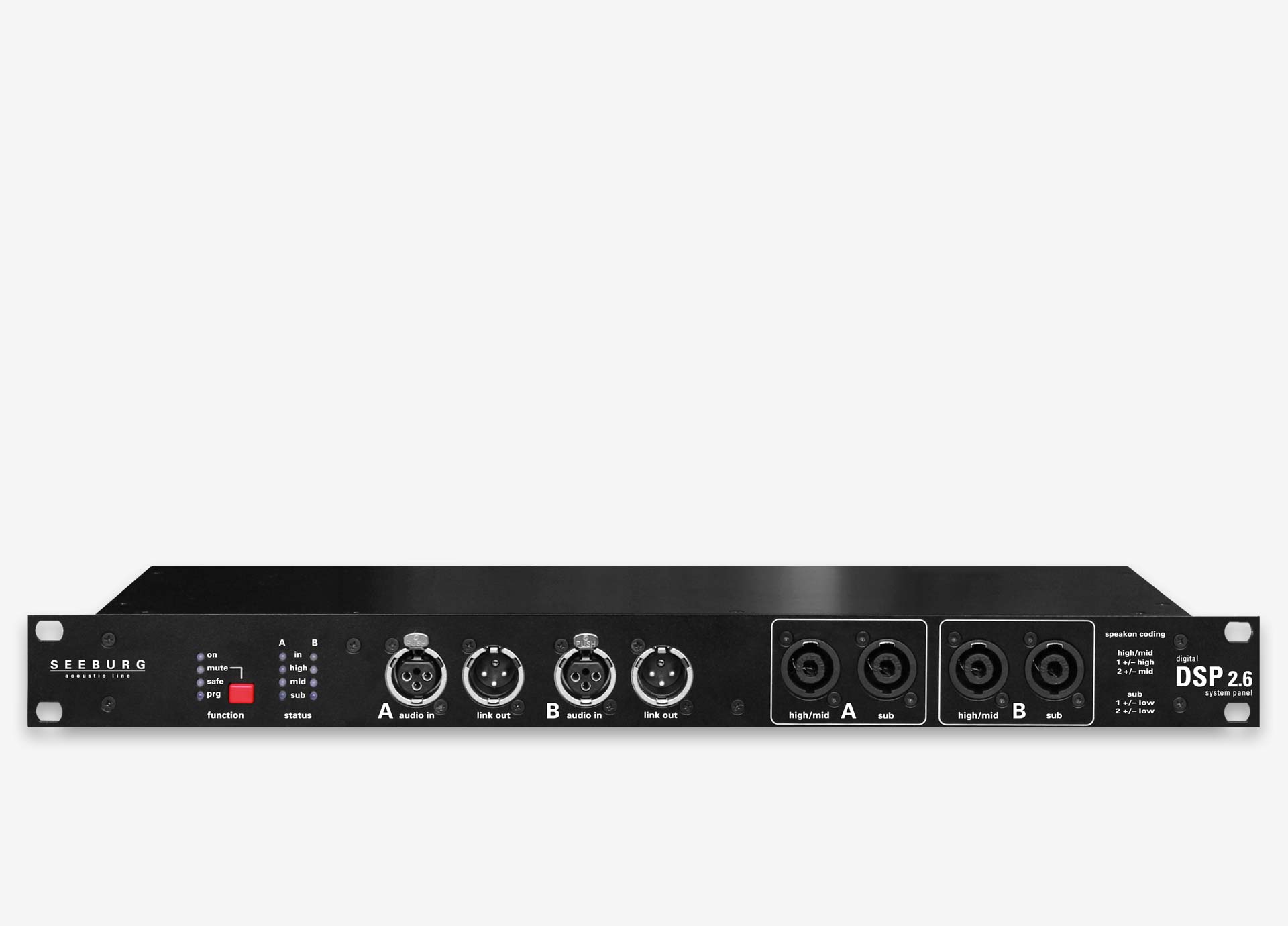

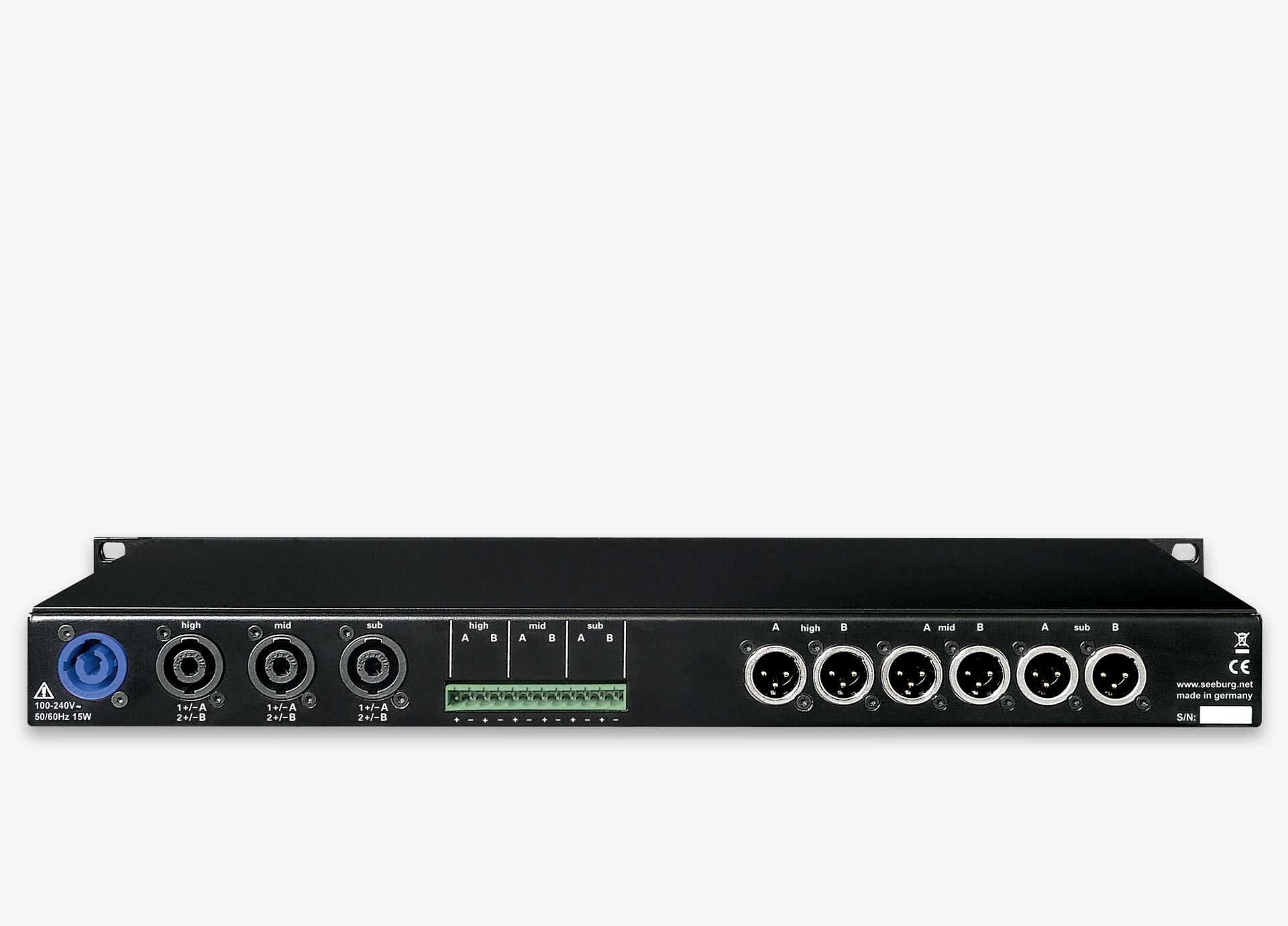

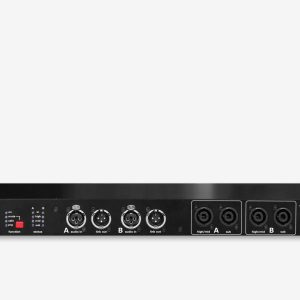

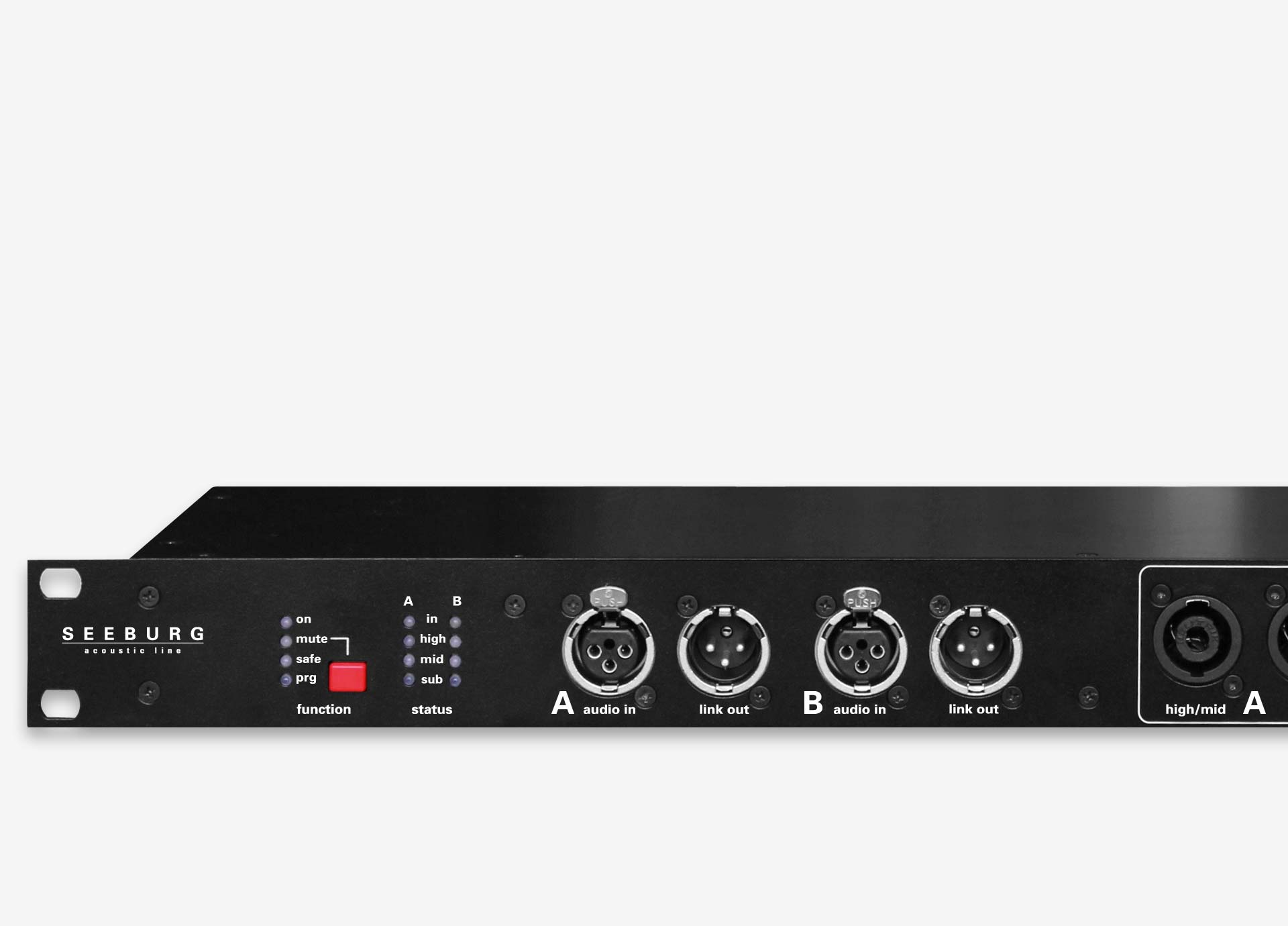

| Connectors | Front: 2 x XLR in/out, 4 x Speakon NL4MP out Rear: 6 x XLR out, 3 x Speakon NL4MP in, 3 x Phoenix in, 1 x Powercon in |
| Rigging / Fittings | 4 x hole for 19” rack mounting |
| Weight | 2,8 kg |
| Size width x height x depth |
48,3 x 4,5 (1 HE) x14,7 cm |
| Order No. | 01412 |
