S-Series

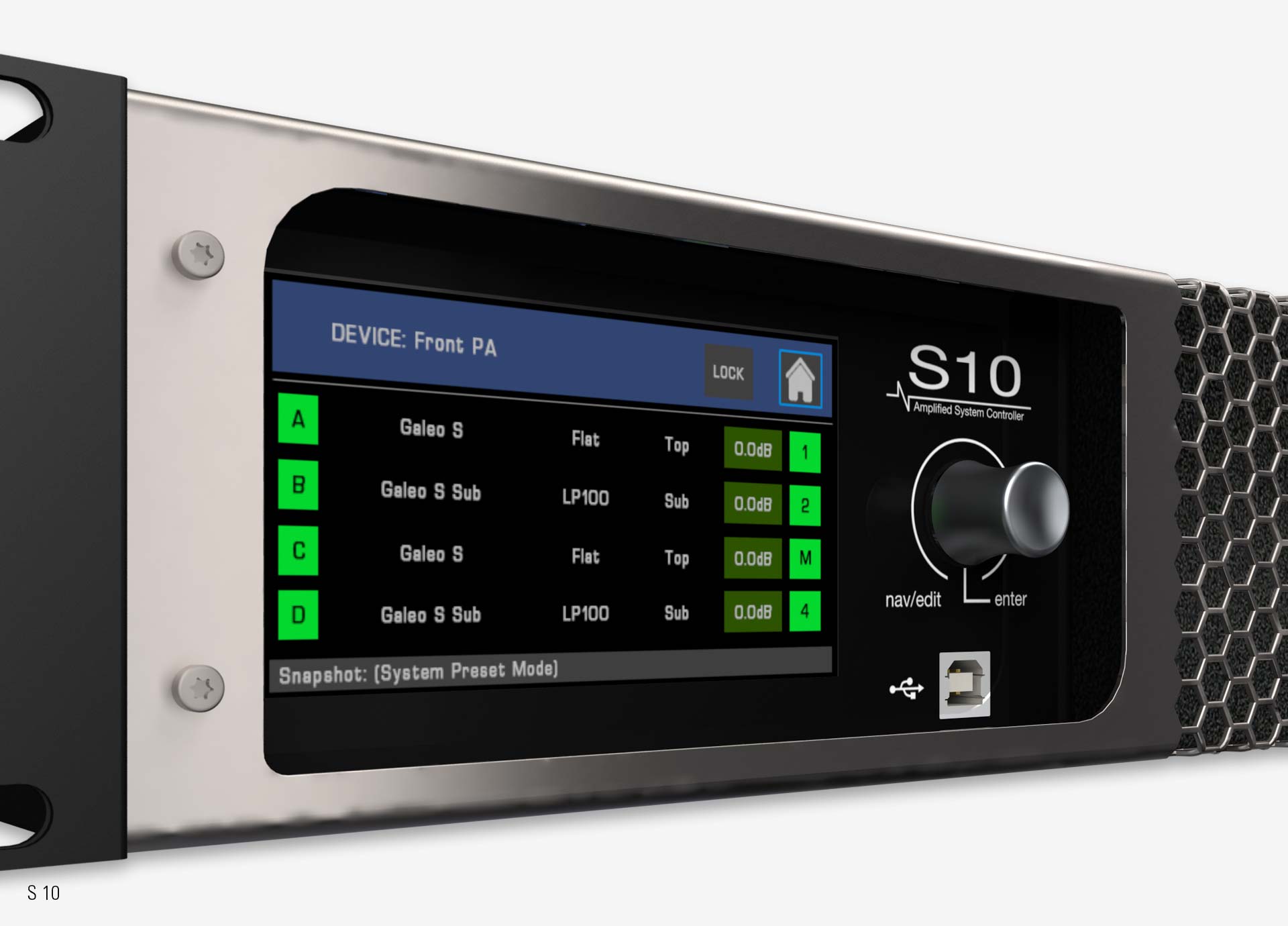

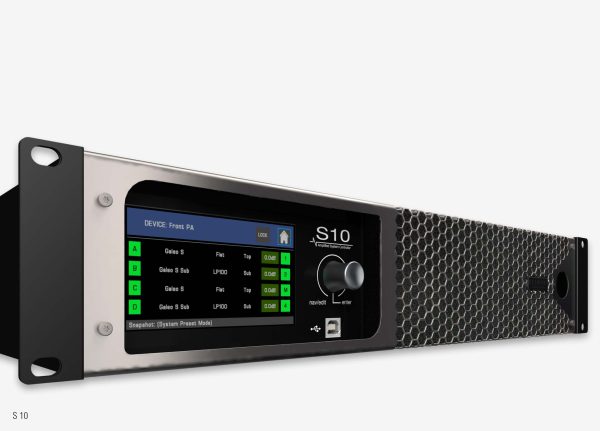

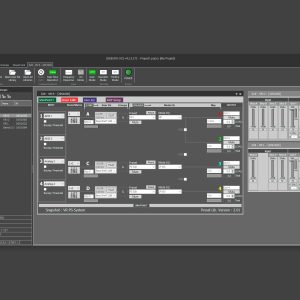

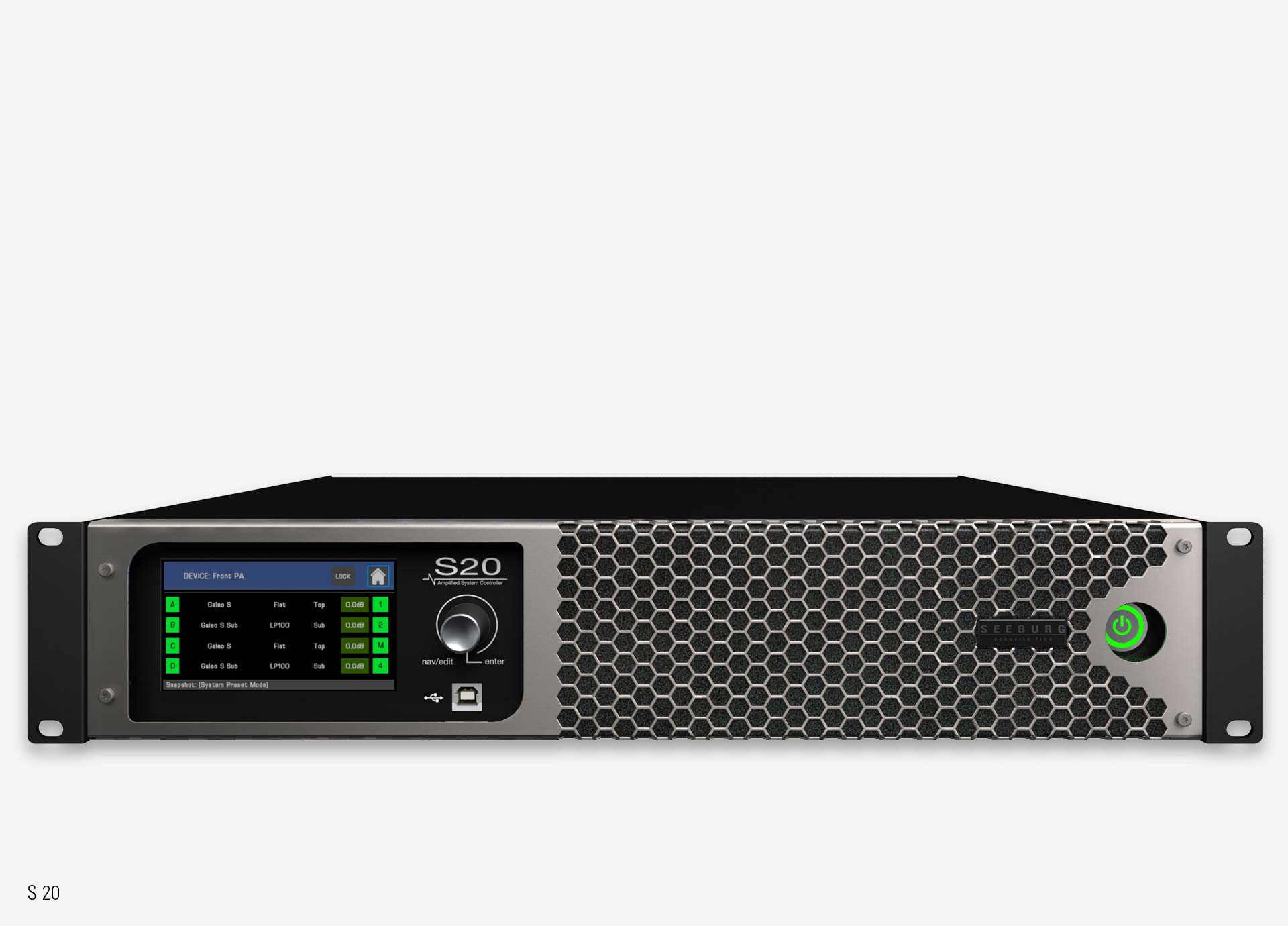

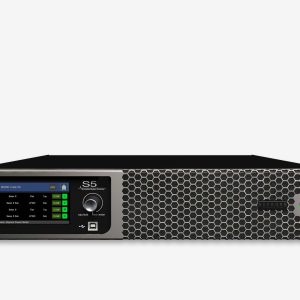

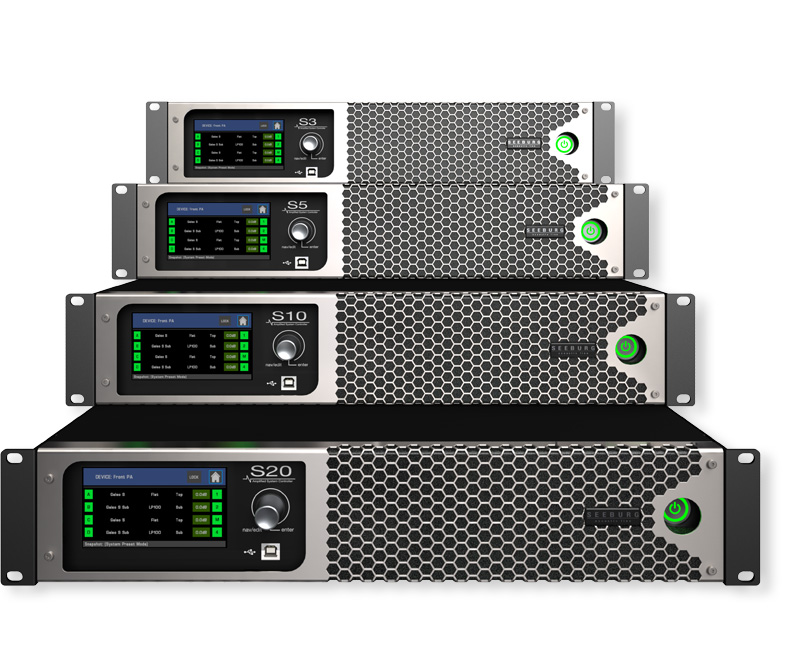

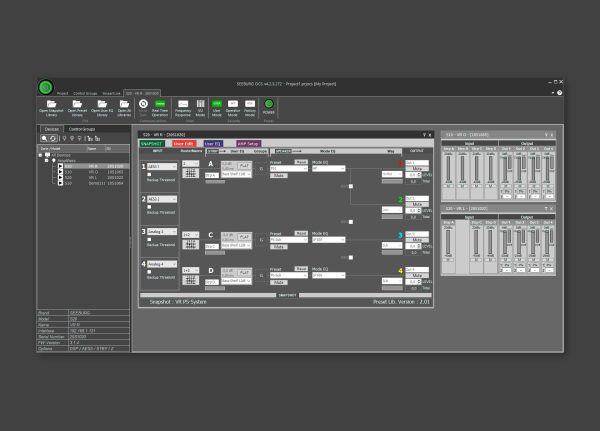

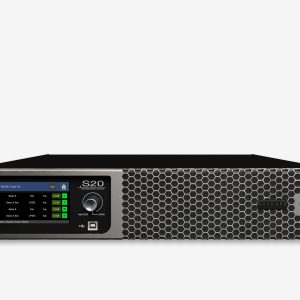

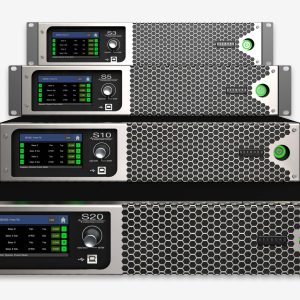

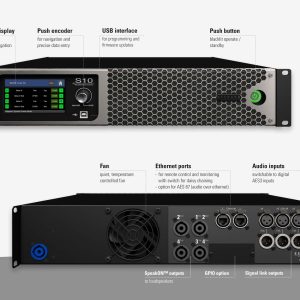

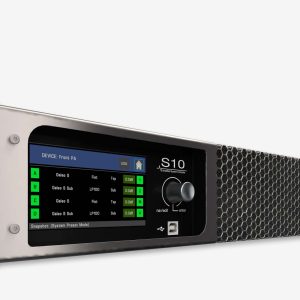

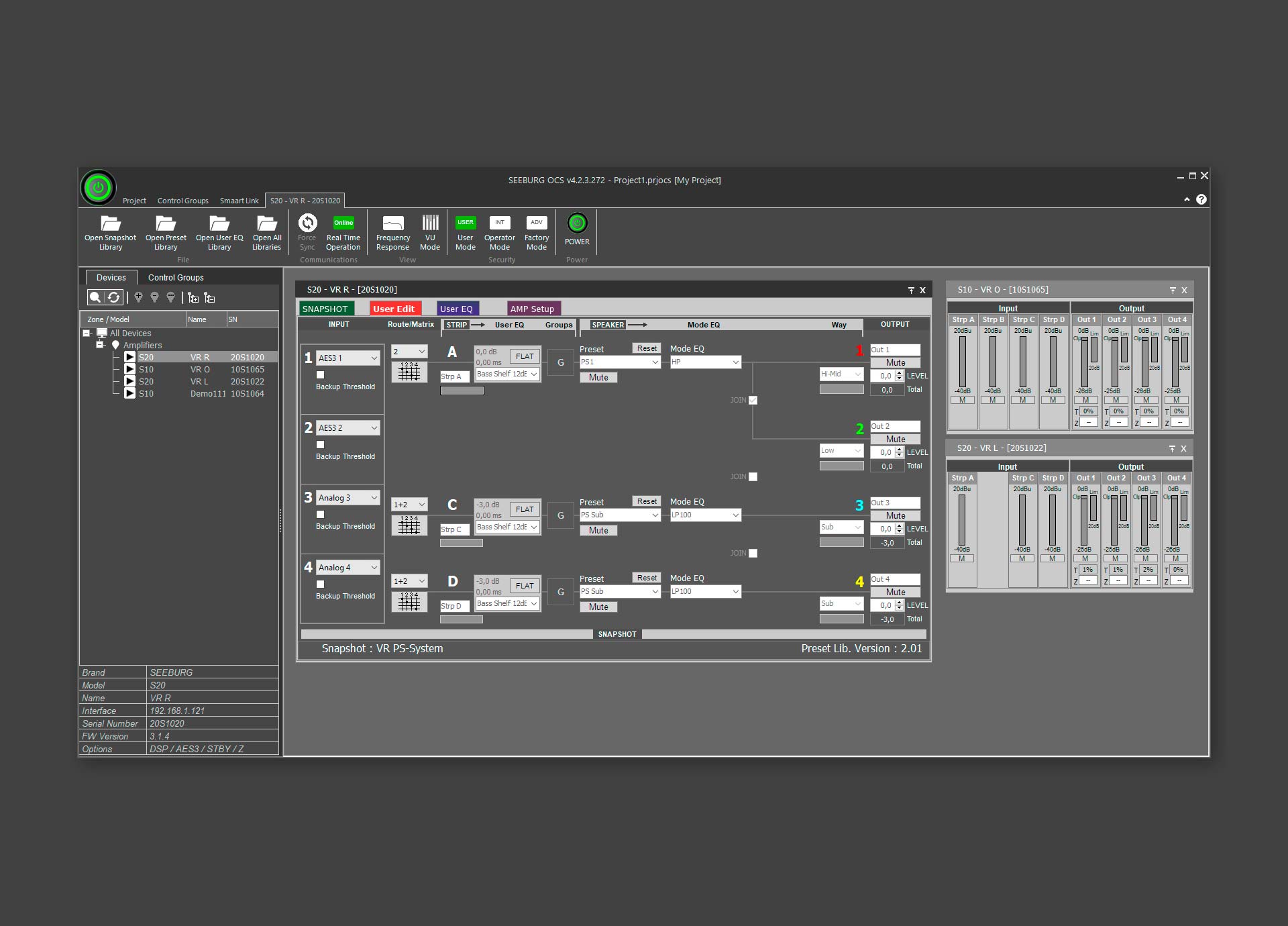

The 4-Channel Amplified System Controllers of the S-Series combine state-of-the-art power electronics with an advanced DSP that can be conveniently operated via the touch display.

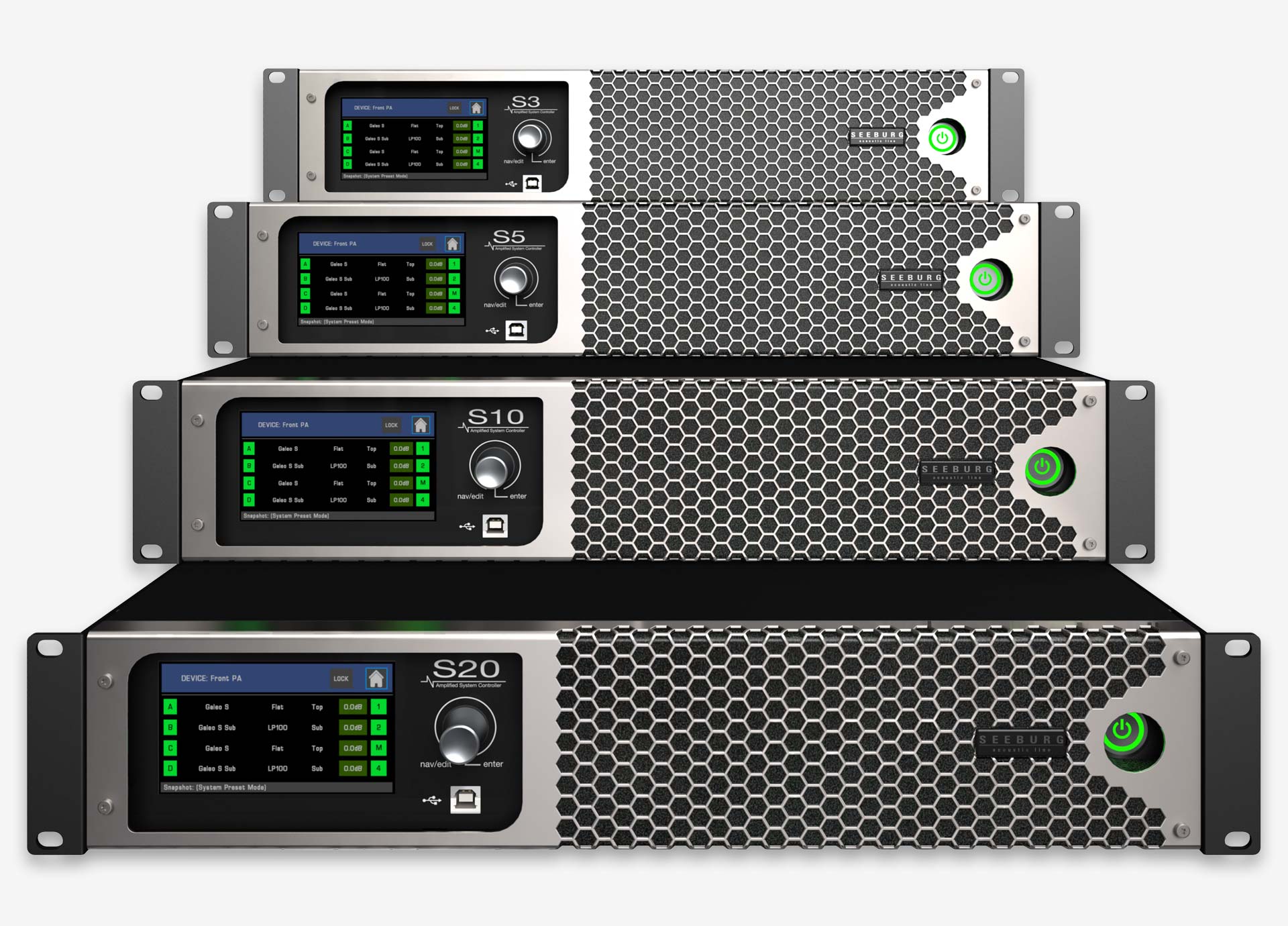

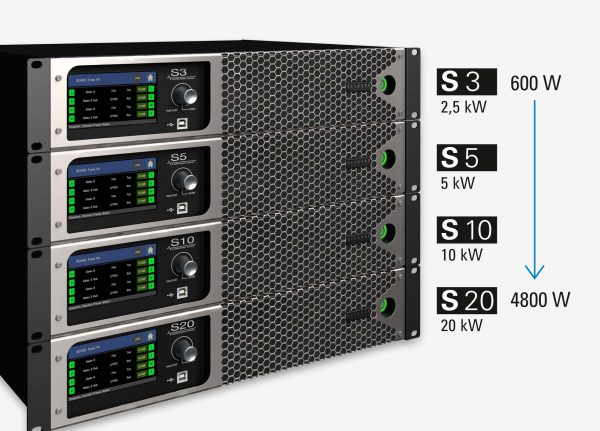

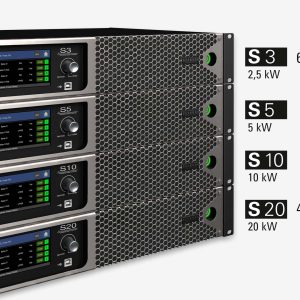

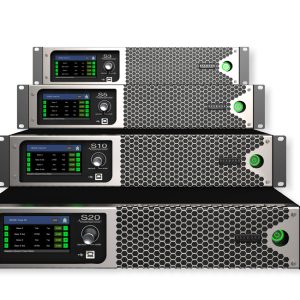

With output powers from 600 W to 4800 W per channel, they cover a wide range of applications, from permanent installations to rental operations, from small configurations to large-scale sound reinforcement.
Its intelligent power sharing ensures that the available power is used very effectively when driving asymmetrical loads. Expandable with GPIO and Audio over Ethernet (AoE) according to the AES 67 standard.
| Model | S 3 | S 5 | S 10 | S 20 | ||
| Description | 4-Channel Amplified System Controller | |||||
| Total Power Supply Output |
2,5 kW | 5 kW | 10 kW | 20 kW | ||
| Output Power IEC* all channels driven/single channel (Watt) * 40 Hz – 5 kHz,12 dB crest factor |
8 Ω 4 Ω 2,7 Ω 2 Ω 100 V 70 V |
4 x 600 / 1 x 1200 4 x 600 / 1 x 1200 4 x 600 / 1 x 800 4 x 600 / 1 x 600 4 x 600 / 1 x 1200 4 x 600 / 1 x 1200 |
4 x 1200 / 1 x 1200 4 x 1200 / 1 x 2400 4 x 1200 / 1 x 1700 4 x 1200 / 1 x 1200 4 x 1200 / 1 x 2400 4 x 1200 / 1 x 1800 |
4 x 1200 / 1 x 1300 4 x 2400 / 1 x 2500 4 x 2400 / 1 x 3300 4 x 2400 / 1 x 2500 4 x 2400 / 1 x 2500 4 x 2400 / 1 x 2500 |
4 x 2400 / 1 x 3000 4 x 4800 / 1 x 6000 4 x 4800 / 1 x 6700 4 x 4800 / 1 x 5000 4 x 4800 / 1 x 5000 4 x 3500 / 1 x 3500 |
|

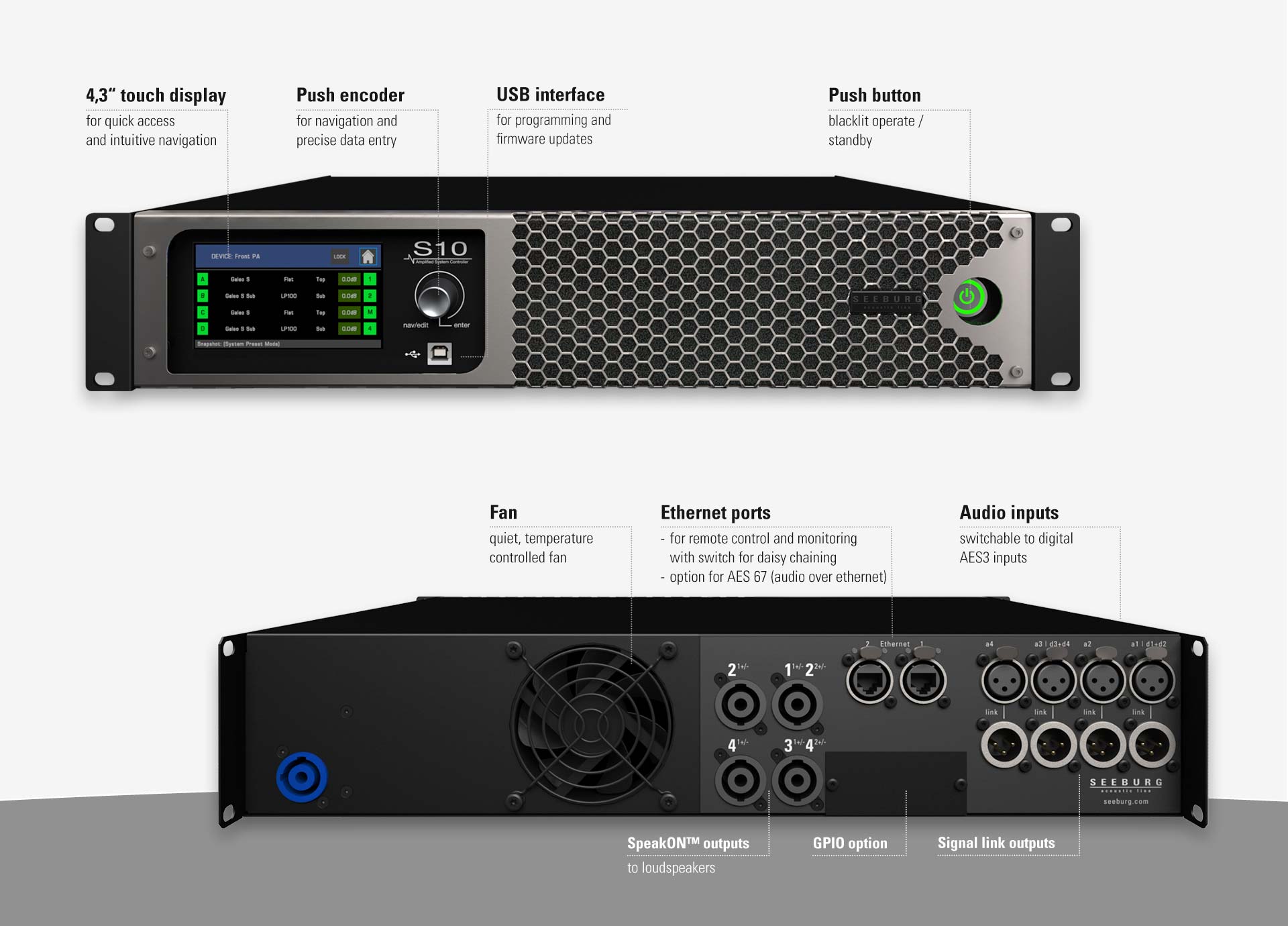

| Peak Output Voltage | 150 V | 150 V | 150 V | 235 V | ||
| Peak Output Current | 25 A | 36 A | 50 A | 71 A | ||
| Total Harmonic Distortions | < 0,05 % | |||||
| SMTPE | < 0,05 % | |||||
| Damping Factor (20 – 500 Hz @ 8 Ω) | > 500 | |||||
| Crosstalk (20 – 1000 Hz) |
> 70 dB (A) | |||||
| Signal to Noise Ratio (20 Hz – 20 kHz) | 111 dB (A) | 111 dB (A) | 111 dB (A) | 115 dB (A) | ||
| Max DSP Input Level (balanced) | + 20 dBu | + 20 dBu | + 20 dBu | + 20 dBu | ||
| Voltage Gain | 26 . . . 44 dB in 1 dB increments | |||||
| Cooling | front to rear airflow, temperature controlled fans | |||||
| User Interface | 4.3“ touch display + push-encoder | |||||
| Inputs | 4 x XLR analogue – 2 x switchable AES 3 | |||||

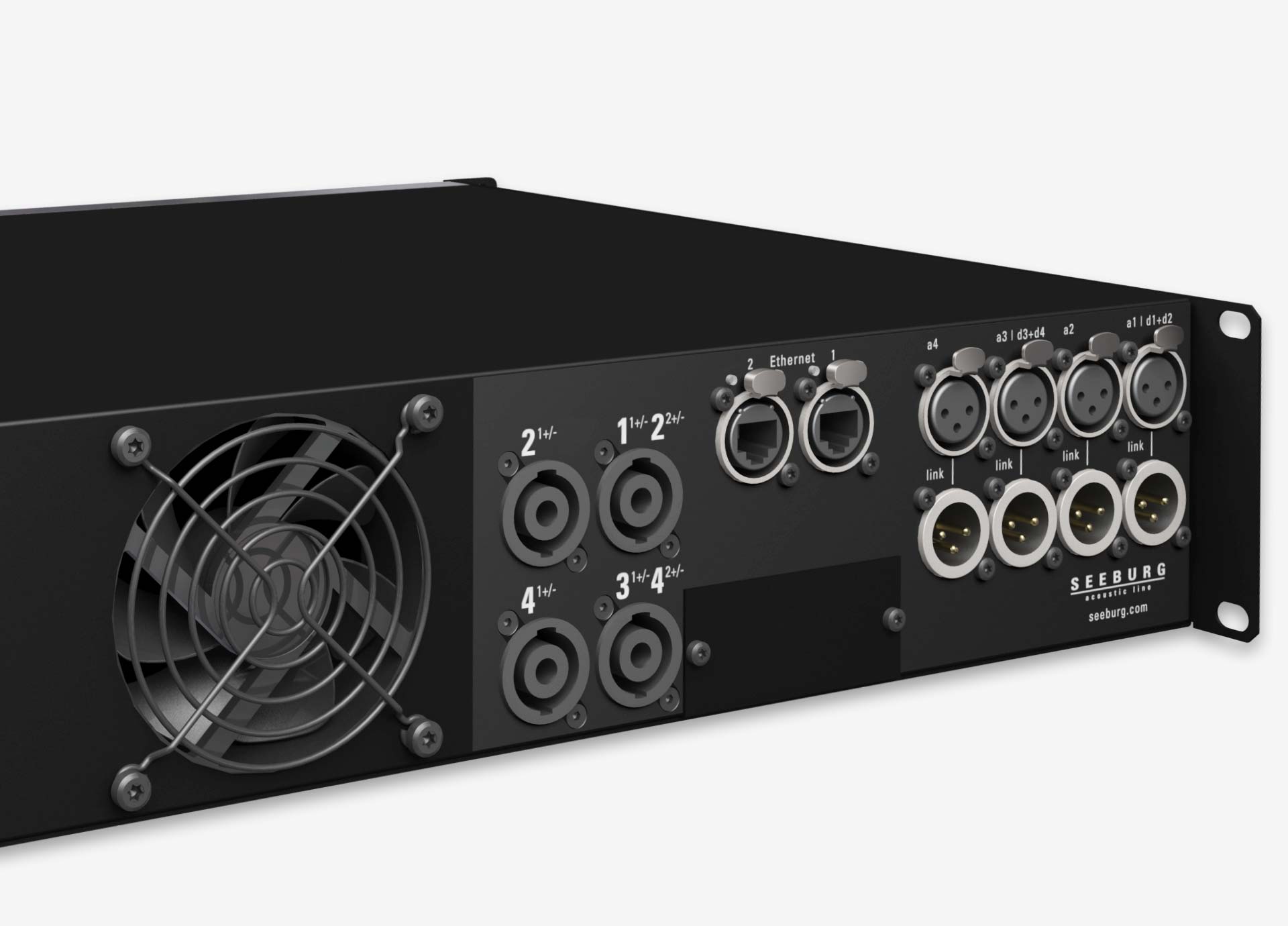

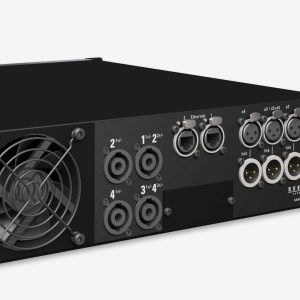

| Outputs | 4 x Speakon NL4 1+/-, 2+/-, 4 x XLR loop thru | |||||
| Connectivity | 1 x USB-B, 2 x RJ45 w / ethernet switch | |||||
| Mains Connector | PowerCON® | PowerCON® | PowerCON® | PowerCON® 32 | ||
| Operating Mains Voltage | 90 – 265 V AC | |||||
| Current Draw (@1/8 output power) | 2,1 A | 3,7 A | 7,3 A | 14 A | ||
| Power Consumption (idle/sleep/standby) | < 100 W (S 20: < 140 W) / < 40 W / < 5 W | |||||
| Protections | soft start, turn-on / turn-off transients, turn-on mute, over-temp, DC, RF, short circuit, open / mismatched load, overload, clip limiter, mains breaker protection |
|||||
| Weight | 6,7 kg | 6,8 kg | 7 kg | 9,5 kg | ||
| Size height x width x depth (mm) |
88 (2HU) x 483 (19″) x 330 (S 20: 360) | |||||
| Order No. | 01823 |
01825 | 01827 | 01829 | ||
| 01821/AES 67 (AES 67 Board) 01821/GPIO (GPIO Karte) |
||||||
