K Sub 1502

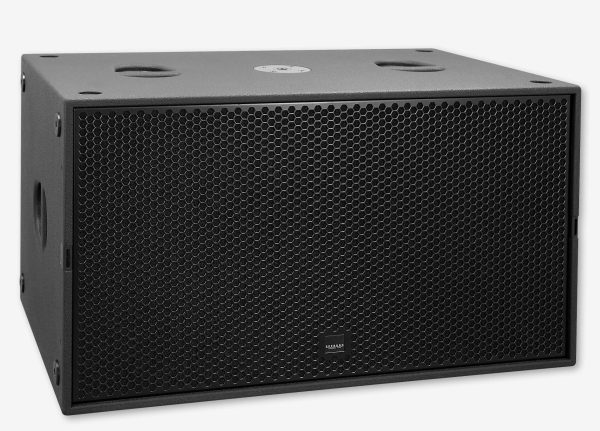

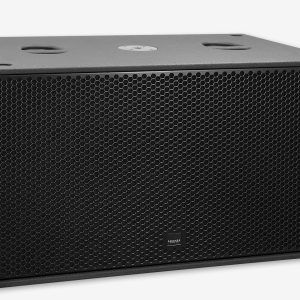

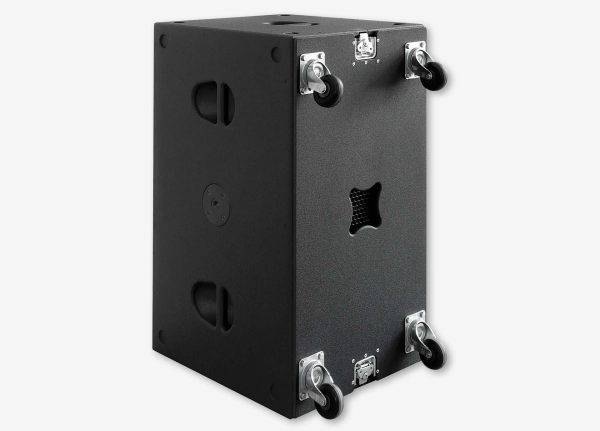

High performance bass reflex subwoofer. Twin long excursion 15″ Neodym chassis provide accurate and highly efficient bass reproduction over a wide frequency range, powered by the integrated 2400 W amplifier. The on-board DSP controller offers three filter presets, a switchable cardiod mode, and a range of loudspeaker presets. A transport front cover with wheels is optionally available. The K Sub 1502 can be used in a horizontal or a vertical orientation as required.
The K Sub 1502 is also available in the selfpowered dp-version.
| K Sub 1502 |
K Sub 1502 dp | |
| Speaker Components | 2 x 15“ Nd (4“ VC) | 2 x 15“ Nd (4“ VC) |
| Description | Passive Bass Extension | Digitally Powered Bass Extension |
| Power AES / Peak | 2000 W/ 6000 W | – – – |
| Amp Power |
– – – | 2400 W AES |
| Impedance nominal | 4 Ω | – – – |
| Rated Current | – – – | 3,2 A @ 230 V |
| SPL 1 W / Peak @ 1 m |
104 dB / 142 dB | – – – |
| SPL Peak @ 1 m | – – – | 142 dB |
| Max. Input Signal | – – – | 25 dBu |
| DSP | – – – | DPLMx FPGA Processing 32 bit floating point |
| AD / DA | – – – | 24 bit / 96 kHz |
| Latency | – – – | 0,8 ms (analog in to analog out) |
| Usable Range – 6 dB |
37 Hz – 220 Hz | 37 Hz – 100 / 120 / 140 Hz |
| Tuning Frequency excursion minimum | 45 Hz | 45 Hz |

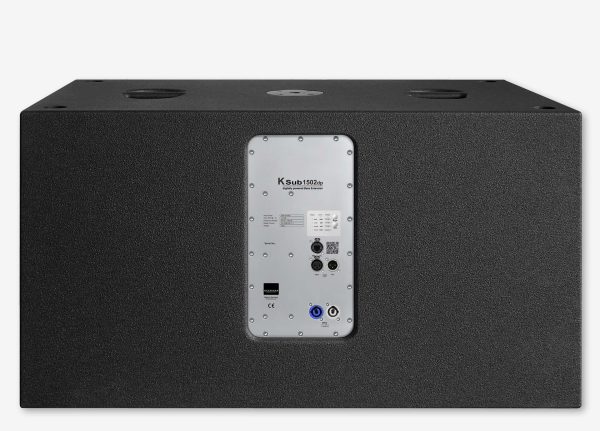

| Connectors | 2 x Speakon NL4MP in/out Coding: 1+/- loop thru, 2+/- Sub |
XLR in/thru, Ethercon, Powercon in/thru |

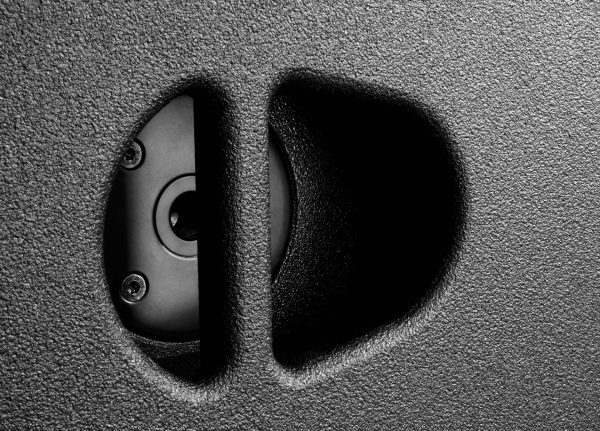

| Handles | 6 x | 6 x |
| Rigging / Fittings | M20 on top and side Wheelboard fittings |
M20 on top and side Wheelboard fittings |
| Weight | 48,0 kg (+ 8,5 kg wheelboard) |
50,0 kg (+ 8,5 kg wheelboard) |
| Size height x width x depth | 51,2 x 94,2 x 56,0 cm | 51,2 x 94,2 x 56,0 cm |
| Order No. | 01059 | 01059/dp |
