The DSP 2.6 combines a high quality 2-in / 6-out loudspeaker management system with a system connection panel including all necessary input and output connections in one device, thus making the configuration of a professional amp rack a very simple matter. The two low-noise analog inputs are actively balanced, with characteristics which closely simulate those of a balancing transformer.

Audio files for programming the DSP 2.6 can be generated on the Seeburg website with the program “LPI” (Loudspeaker Programming Interface).

–>   LPI Programming-Interface (Web-Link)
–>   SEEBURG DSP 2.6 Productinformation (video)

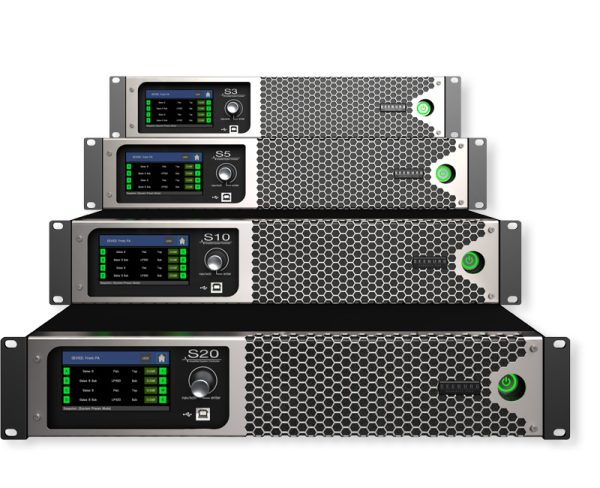

The 4-Channel Amplified System Controllers of the S-Series combine state-of-the-art power electronics with an advanced DSP that can be conveniently operated via the touch display.
With output powers from 600 W to 4800 W per channel, they cover a wide range of applications, from permanent installations to rental operations, from small configurations to large-scale sound reinforcement.
Its intelligent power sharing ensures that the available power is used very effectively when driving asymmetrical loads. Expandable with GPIO and Audio over Ethernet (AoE) according to the AES 67 standard.

High output universal high – mid system fitted with a classic 2 x 8″ Nd / 1″ driver combination. Equally suited as a strong top in combination with a subwoofer or as a stand alone system for speech reproduction over short to medium distances. Four M10 mounting points, and a fifth as an optional alternative to the speaker stand socket, in combination with the comprehensive accessory range, allow simple vertical or horizontal mounting.

The A 3 is also available in the dp-version with an integrated,
DSP controlled 500 Watt / 150 Watt AES amplifier.

An unobtrusive and elegant Hi – Mid system for permanent installations and coporate applications. The classic 2 x 6.5” Nd / 1” combination provides for clear and transparent speech reproduction and a good throw. Four M10 mounting points, and a fifth as an optional alternative to the speaker stand socket, in combination with the comprehensive accessory range, allow simple vertical or horizontal mounting.

The A 3 is also available in the dp-version with an integrated,
DSP controlled 500 Watt / 150 Watt AES amplifier.

Universal small format loudspeaker for high quality music and speech reproduction. Well suited for applications in Pubs, Bistros and Cafes, and as a universal near field system. 3 x M10 mounting points provide for easy installation.

The A 1 is also available in the TR-version with 100 V transformer.

Multifunctional premium-class compact 2-way system. The coaxial configuration in combination with a carefully designed large-area horn ensures absolutely constant response even off the main axis. High-power Neodym drivers and long-excursion coils provide high efficiency and reduced distortion.
Nine M10 threaded mounting points are available to mount MultiRigg hardware and other accessories for installation or mobile applications.

The X 8 is also available in the selfpowered dp version:
The integrated digital amplifier technology provides 1500/ 400 Watt AES and DSP control. A range of factory-configured presets and volume settings can be selected.

Multifunctional premium-class compact 2-way system. The coaxial configuration in combination with a carefully designed large-area horn ensures absolutely constant response even off the main axis. High-power Neodym drivers and long-excursion coils provide high efficiency and reduced distortion. Nine M10 threaded mounting points are available to mount MultiRigg hardware and other accessories for installation or mobile applications.

The X 6 is also available in the selfpowered dp version:
The integrated digital amplifier technology provides 1500/ 400 Watt AES and DSP control. A range of factory-configured presets and volume settings can be selected.

Multifunctional premium-class compact 2-way system. The coaxial configuration in combination with a carefully designed large-area horn ensures absolutely constant response even off the main axis. High-power Neodym drivers and long-excursion coils provide high efficiency and reduced distortion.
Nine M10 threaded mounting points are available to mount MultiRigg hardware and other accessories for installation or mobile applications.

The X 4 is also available in the selfpowered dp version:
The integrated digital amplifier technology provides 800/ 400 Watt AES and DSP control. A range of factory-configured presets and volume settings can be selected.
